Features
- Get an instant in-focus image of your designated target. LaserSharp® Auto Focus
- Save time–wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Make faster decisions by accessing inspection measure-ments from anywhere. Team members can instantly see the same data, at the inspection site and the office.
- Eliminate potential for mis-diagnosis with automatically focused images throughout your field of view with MultiSharp™ Focus
- Easily maneuver over, under and around objects with the 240° rotating screen while viewing the screen at a comfortable angle, unlike standard pistol grip cameras
- The ergonomic design and neck strap make long inspection days a lot easier
- 5.7-inch screen provides 150 % more viewing area than a standard 3.5-inch screen
Accessories (Included)
- Infrared Camera with Standard Infrared Lens
- AC Power Supply & Battery Pack Charger (including universal AC adapters)
- Lithium Ion Smart Battery Packs (2)
- USB Cable
- HDMI Video Cable
- Hard Carrying Case
- Soft Transport Bag
- Adjustable Hand & Neck Strap
Specifications
- Detector resolution: 640 x 480 (307,200)
- SuperResolution 4x the data to create a 1280 x 960 image
- IFOV with standard lens (spatial resolution) 0.93 mRad, D:S 1065:1
- Field of view: 34 °H x 24 °V
- MultiSharp™ Focus: Yes, focused near and far, throughout the field of view
- Picture-In-Picture (PIP): 100 %, 75 %, 50 %, 25 % IR
- Thermal sensitivity (NETD): ≤ 0.05 °C at 30 °C target temp (50 mK)
- Frame rate: Yes
- Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)
- User-definable spot markers: 3 user-definable spot markers
- Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simpli?ed Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

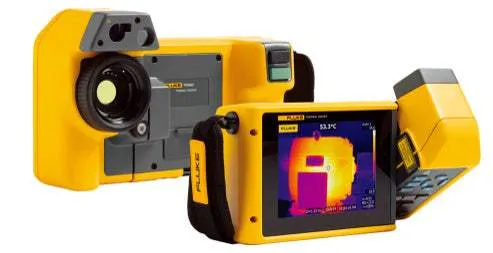

The TIX580 60HZ is a thermal imager from Fluke. Rotating screen of 240° lets you easily maneuver around objects and the 5.7-inch screen gives you 150% viewing area. SuperResolution gives you 4x the pixel data and captures multiples images and combines them to create a 1280 x 960 image.
